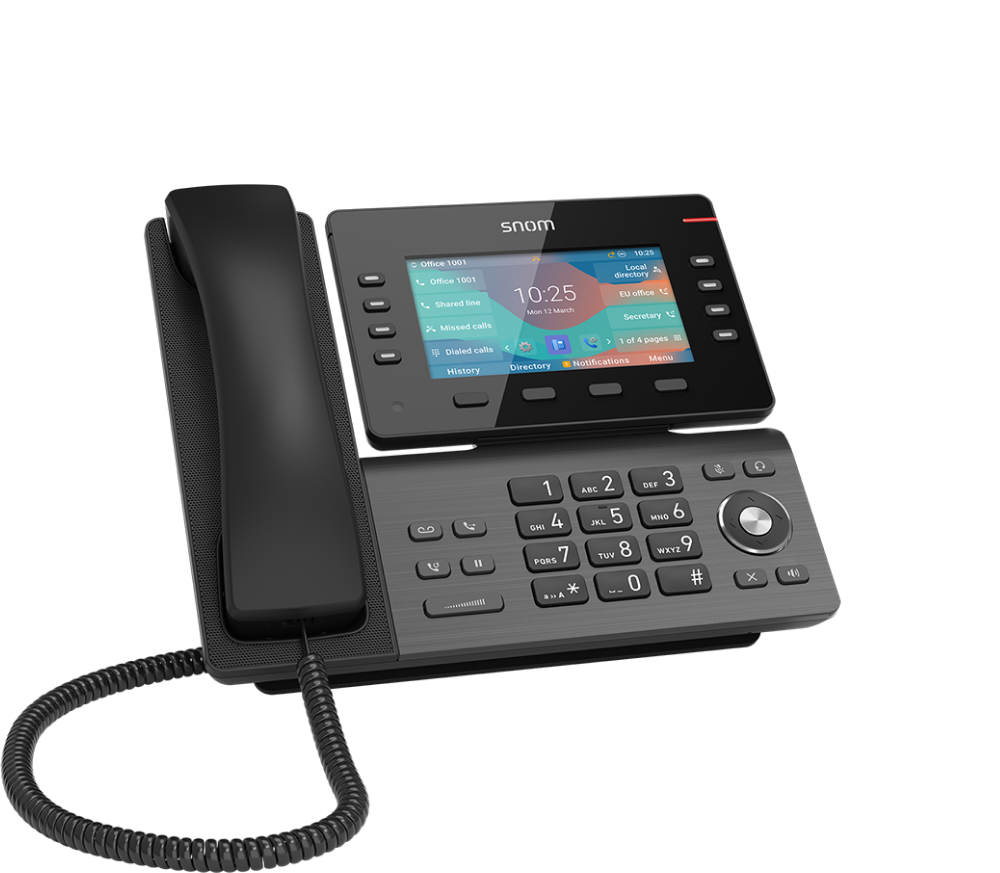

Snom D862

Desk phone

Key features

Large tilting 5 inch IPS colour display
High speed USB 2.0 connection
8 programmable function keys
Optimised noise reduction

Technical details >

Documentation >

Purchase options >

The perfect entry into the world of modern IP telephony

The Snom D862 is a stylish entry-level device of the Snom D8xx series which is ideally suited for any desk with its elegant design.

The Snom D862 combines advanced technology, excellent voice quality and an attractive design in one device.

Equipped with a high-quality, 40° continuously adjustable 5" LCD screen, it always offers a very good overview, regardless of the lighting situation at the workplace. The 8 freely programmable function keys are ideal as BLF keys or for storing speed dials and a variety of other functions.

Elegant and tidy design

The very high-quality design in gunmetal look and the consistently elegant as well as particularly clear design make the desk telephones of the D8xx series an eye-catcher on every desk.

High-resolution colour display

The tiltable 5-inch TFT colour display with a resolution of 1280 x 720 pixels guarantees optimum visibility of the display contents in any light.

Self-labelling function keys

Thanks to the 8 programmable function keys, you can customise your Snom desk phone to suit your needs, allowing you to start calls or perform other important functions quickly and easily at the touch of a button.

Overview of Series

> Snom D865

Large tiltable 5 inch IPS colour display
2x USB 2.0 high speed connection

> Snom D815W

Large 5 inch IPS colour display
2x USB 2.0 high-speed connection

> Snom D812

Large 5 inch IPS colour display
USB 2.0 high-speed connection

> Snom D8C

6.8 Zoll (17.2 cm) TFT colour screen
Expansion module with 60 programmable buttons on 3 sides
Plug-and-play

Technical features

On-screen smart labels

This device has, instead of a second display for the display of the freely programmable function keys (e.g. BLF), a display of the same in the main display in Smart Label format.

Gigabit Ethernet

This device has a Gigabit network input and an output (switch) for connecting a computer.

HD audio

This device supports with its hardware and the supported codecs, the highest audio quality.

Headset connectable

This device has a port and possible software support that allows a headset to be connected.

IPv6 & IPv4

This device supports both Internet Protocol version 4 (IPv4) and IPv6.

OpenVPN

This desk phone can be upgraded to an OpenVPN client with an additional firmware upgrade to connect it to an OpenVPN server.

Power over Ethernet (PoE)

This device can receive its power from a connected network cable, provided that the network switch used supports this and has enough power to supply all connected devices.

Plug & Play

This device comes with Plug & Play. This means you can use accessories connected via USB without rebooting the phone.

Security (TLS & SRTP)

This device supports all common security protocols, such as TLS, SIPS, SRTP, etc.

Telephone directory

This device has an integrated phone book.

USB port

This device has at least one USB port.

Compatible Headsets

Corded

The corded headsets from Snom are equipped with extra long cables for maximum freedom and offer with their ergonomic design for fatigue-free wearing comfort in daily use.

> Snom A100D

Binaural wideband headset
300° flexible boom
Passive noise cancelling microphone
Super light: 79g (without cable)

> Snom A100M

Monaural wideband headset
300° flexible boom
Passive noise cancelling microphone

> Snom A330D

Full band audio
Remote control with LED indicator and 5 buttons
3.5mm jack & USB plug

> Snom A330M

Full band audio
Remote control with LED indicator and 5 buttons
3.5mm jack & USB plug

Cordless

Snom's cordless headsets use DECT wireless technology, which allows you to work comfortably and with both hands free in and around the workplace.

> Snom A150

Wireless DECT headset
High range

> Snom A170

Wireless DECT headset
Connection to Snom phone or PC possible (USB)
Passive noise cancelling microphone
Battery replaceable during a call

Practical example

"How can I connect my phone via OpenVPN..."

However, in order to connect two company locations or employees in the home office as if they were on site, a VPN tunnel is a very good and uncomplicated solution. Snom has been using the extremely popular, secure and free open source solution, Open-VPN, for years. We have prepared a detailed
article for you on our Service Hub, which explains how you can install such an Open-VPN solution.

To the OpenVPN Guide

keyboard_arrow_right

Help with questions about products, availability and prices

Contact person

Snom HQ Berlin

+49 30 39833-0

sales@snom.com

Further contact persons

keyboard_arrow_right

Where can you find a Snom partner near you?

You want to buy our products and need advice? Then you have come to the right place.

Find Partner

keyboard_arrow_right

Which distributor offers the products?

Snom is available all over the world. If you are looking for a wholesaler, you can find here all our partner distributors sorted by country.

Find Distributor

keyboard_arrow_right

Customise desk phones

Make it your phone

Snom desk phones can be highly customised. In addition to being able to customise the phone's user interface (UI), most models can also be physically customised.

UI personalisation - software customisation
For all Snom desk phones with a colour display, screen backgrounds, title and selection bars, and menu structures can be customised in terms of content and colour. In addition, all devices can use individual ringtones.
Corporate branding - changing the hardware
Some phones of the Snom D7xx series can be printed with your own logo. In addition, you can receive almost all devices with individual key labelling and also order any plastic part (housing, handset, telephone cable) in an individual colour.

Learn more

keyboard_arrow_right

Find the right telephone system (PBX).

List of our compatible PBX

If you would like to know whether your desired phone is compatible with the PBX you are using, you can view the on our PBX partner overview page in the Service Hub.

To the comparison list

keyboard_arrow_right

Information on choosing a PBX

Do you need information when choosing a suitable PBX for your desired telephone? We have compiled some tips for you in the guide on what you should look out for.

To the guide

keyboard_arrow_right

Technical data

Downloads

Expand all add

Firmware

add remove

The latest firmware for your Snom device can be found at the link below. When updating, please follow all safety instructions and take into account which firmware version is currently permitted by the PBX you are using.

You may not be able to update your Snom device manually, but only via the web interface of your PBX.

To the firmware update center
